Clear Hard Coat Anodizing of a 6061 Aluminum Component for the Medical Industry

Clear Hard Coat Anodizing

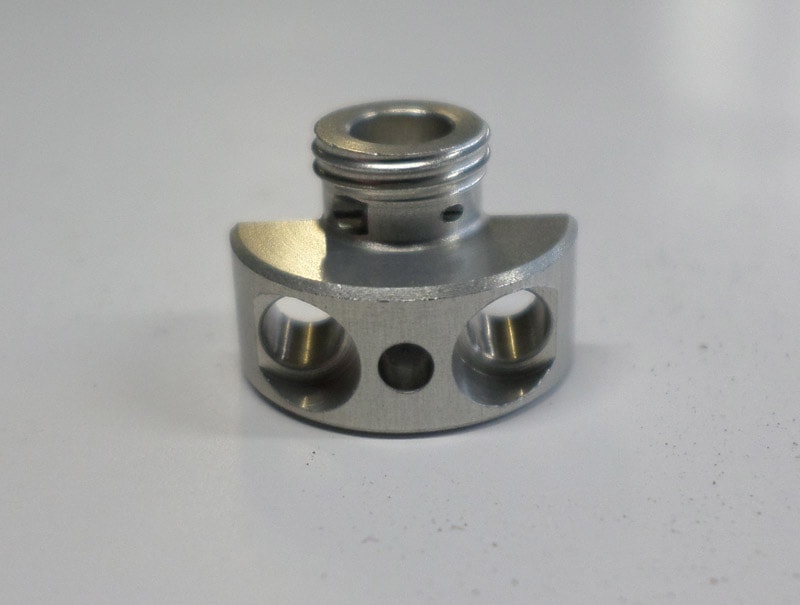

Our capabilities at Automatic Anodizing include the ability to perform hard coat anodizing in accordance with MIL-A-8625 Type III specifications. The part highlighted here is a 6061 aluminum clamping pulley that is used by a customer in the medical industry. The pulley measures only 0.04″ square and required selective masking to protect the intricate part features during anodizing.

Prior to anodizing all parts were thoroughly cleaned to ensure that the aluminum surface would not contaminate the sulfuric acid bath. Proper cleaning and etching is essential to ensure the anodizing process is successful. During anodizing, the parts were placed on a titanium rack for maximum contact with the anodizing bath and allowed to develop a hard coating between 0.0004″ and 0.0007″, according to customer specifications. The anodized surface was sealed to provide maximum corrosion resistance.

This project included the anodizing of 20,000 parts with a one day turnaround and demonstrates not only our high volume processing capability, but our ability to meet rush order deadlines. We have a wealth of experience in developing custom solutions for anodizing complex parts to stringent quality standards. For additional details regarding this hard coat anodizing project, see the table below, or contact us directly.


Clear Hard Coat Anodizing of a 6061 Aluminum Component Project Details

Product NameClamping Pulley
Product DescriptionClamping Pulley Pitch Grip for the Medical Industry
Capabilities Applied/ProcessesPrimary:
Hard Coat Anodizing per MIL-8625, Type III
  • Cleaning
  • Rack
  • Etching
  • Sealing
Equipment Used to Manufacture PartRack Hard Coat Anodize System
  • Titanium Spine and Fingers
Overall Part Dimensions.04″ X .04″
Tightest TolerancesThickness of 0.0004″ – 0.0007″
Material Used6061 Aluminum
Material FinishAs Hard Coated
In Process Testing/Inspection PerformedVisual Inspection
Thickness / Coating Weight
Abrasion Resistance
Corrosion Resistance
Industry for UseMedical
Delivery/Turnaround Time1 Business Day
Delivery LocationNiles, IL
Standards MetCustomer Specifications
